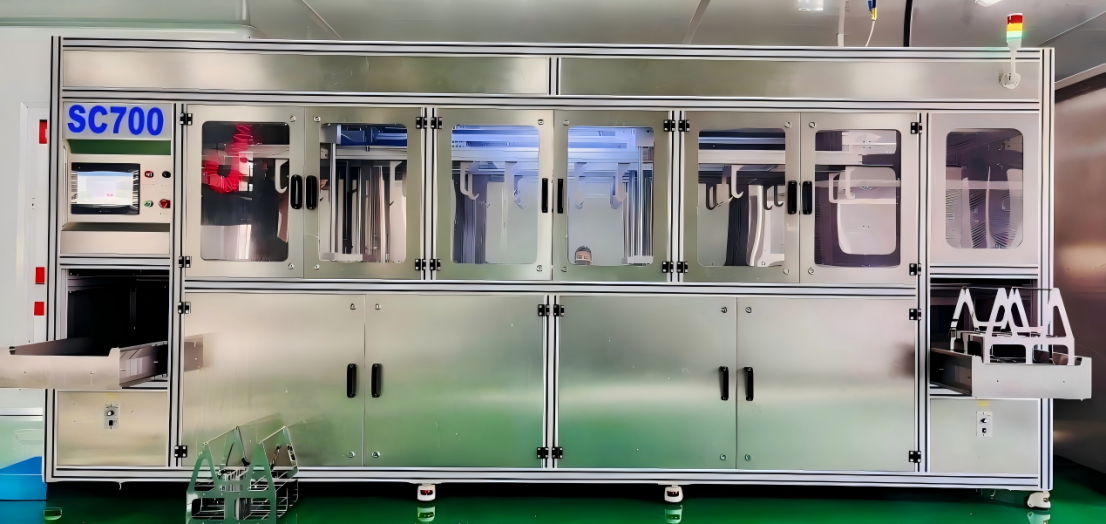

Leadframe Cleaning Machine SC700

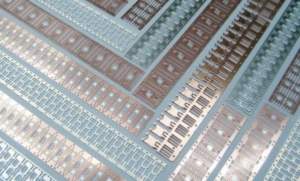

SC700 is inline leadframe ultrasonic cleaning machine.It is primarily used to clean flux on IPM, PDFN,IGBT modules.By adopting multi tanks immersion ultrasonic/spray/agitation wash and rinse cleaning technology, SC700 is capable of cleaning flux and remove oxide layer on leadframe products.

Machine Process:

Machine Features:

1. Stainless steel structure, acid and alkali corrosion resistance, high pressure, high temperature resistance.
2. PLC+ HDMI control system, English operation interface(password-protected).
3. 2 chemical wash+3 DI water rinse, high efficiency.
4. Double frequency ultrasonic wash system for different products.
5. Multi-technology cleaning combination (ultrasonic, agitation, immersion spray).
6. Water based chemical, super oxide layer remove ability.
7. Main and sub tank, wash chemical multi level filtering system.
8. Top cover, reduce 20~30% chemical cost.
9. DI water overflow topurity water and save water
10. Chemical auto add and drain system.
11. Single robotic arms.
12. Real-time DI water flow meter to monitor water flow rate.
13. Real-time DI water resistivity meter to monitor input DI water resistivity
14. Independent electrical cabinet.
15. N2 port for better dry result.
16. Magazine auto loader and unloader devices.
