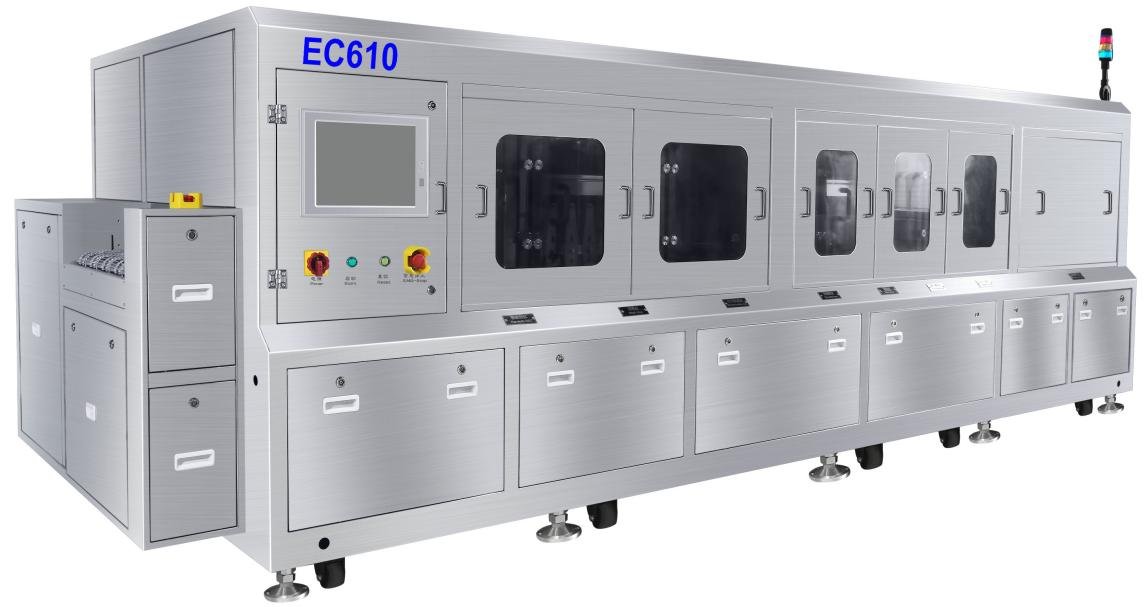

EC610

EC610 is WLP/WLCSP flux cleaning machine. By adopting fixing table, spray cleaning technology and PC+PLC control system, EC610 is capable of clean flux under low stand of WLP/WLCSP.

Machine Process:

Wash:spray wash

Rinse:spray rinse

Dry:contrifugal dry

Machine Features:

1. Stainless steelmachine,high pressure, high temperature resistance.
2. PC+PLC controlsystem, Windows based English operational software.
3. High pressure wash and rinse spray manifolds, spray pressure adjustable.
4. Multiple level filter system.
5. DI water auto add and drain system.
6. DI water resistivity monitoring system.
7. Table speed adjustable.
8. Auxiliary hot air dry.
9. DI water leakage auto detecting system.
10. Spray manifolds angle adjustable.
11. EFEM modular system.
12. Over load protection: over current and overload protection functions.
13. DI waterlevel protection:high level and low level protection function.
14. Over-temperature protection function: water tank and hot air drying sections.
15. Auto 2D code scanner.
16. SECS/GEM Protocol.
