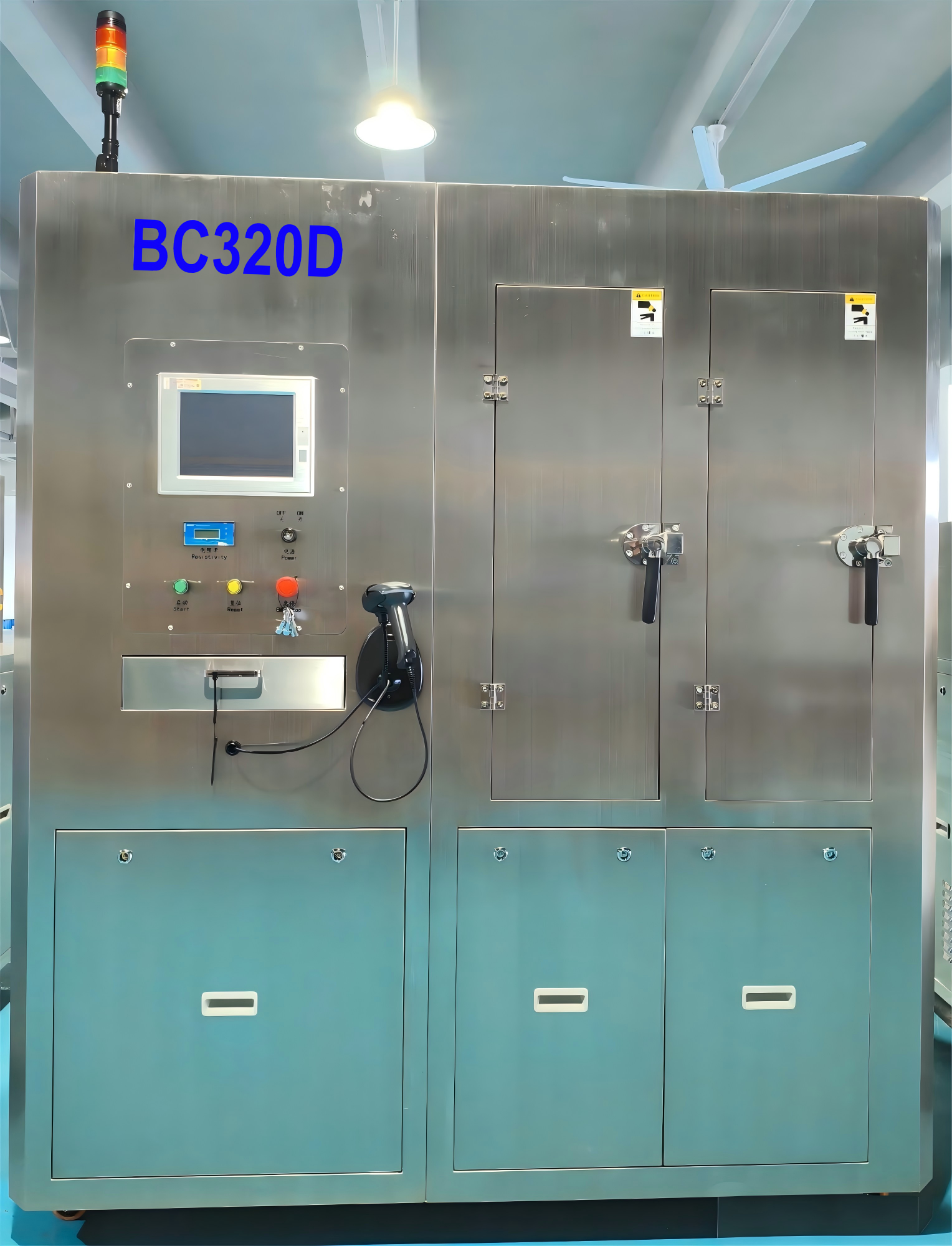

BC320D Dual Stencil Cleaning Machine is designed for automatic cleaning of SMT solder paste stencils, glue stencils/copper stencils, misprinted PCBs, and solder paste squeegee. It has 2 stencil lanes so it can clean 2 stencils in one machine.
BC320 Dual stencil cleaner adopts a distinctive design where the stencil moves back and forth while the spray bars and air knives remain fixed. The processes of cleaning, rinsing, and drying are automatically completed within a single machine. During cleaning, the left and right spray bar nozzles jet simultaneously, ensuring equipment stability, balanced stencil tension, and ultra-high cleaning quality.
Machine Process:
Put in stencil–Chemical spray wash–DI water spray rinse–Hot air dry–Take out stencil
Machine Features:
- 2 stencil holding lanes, clean 2 stencils in one time.
- Stainless steel machine, acid and alkali corrosion resistance.
- For SMT solder paste/red glue stencil/cooper stencil, misprint PCBcleaning.
- 8spray rods and 8 air knives fixed and stencil moves mechanism.
- Real-time wash chemicaland rinse DI water filtering system.
- Chemical wash and DI water rinse are 2 different systems.
- All process is visible through a large right side observe window.
- CDA pressure blow off chemical in pipes and pumps, saves chemicalup to 50%.
- PLC+HDMI control system, Englishoperational interface.
- Wash chemicaland rinse water auto add and drain function.
- LS protection: 4 levels liquid and water levle switch, low level to protect heater, pumps,M and H level remind to add liuqid or water,HH level to protect overflow.
- Heaters temp control: PID mode , ±1℃accuracy, over temp protection.
- Excellent software function: auot/manual mode, I/O ports, paramenters setting,filter replace reminding…
- Famous, high quality parts: Scheidier, Mitsubish, Omron, SMC, CKD brank.
