SC720

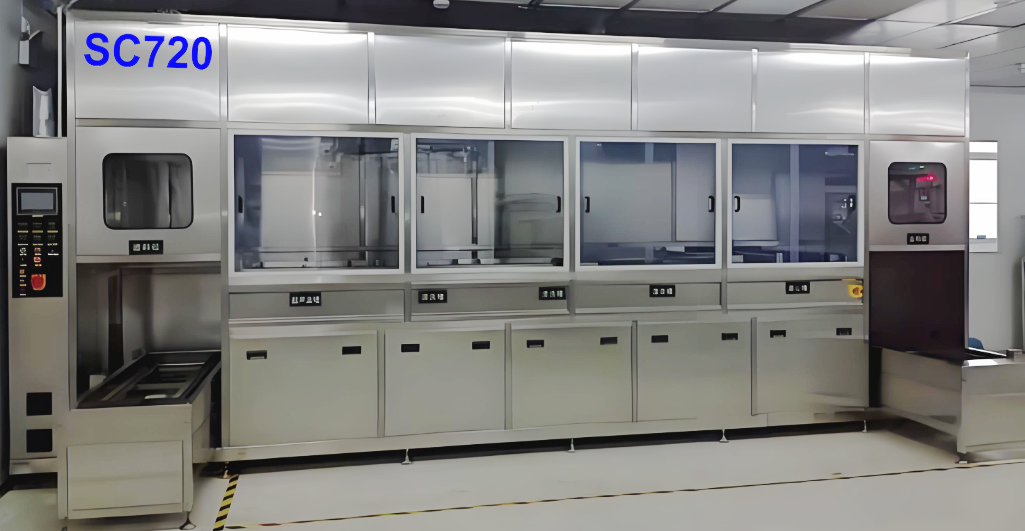

SC720 Leadframe Packaging Flux Cleaning Machine

The SC720 is mainly designed for the automatic cleaning of flux residues on leadframe packaging products, such as IPM and IGBT. Adopting a multi-tank structure with immersion ultrasonic and jet cleaning methods, the machine uses water-based cleaning fluid to thoroughly remove residual flux on leadframe packaging modules, followed by DI water rinsing and hot air drying processes to complete the entire cleaning operation.

Machine Features:

1. Entire machine constructed from stainless steel, resistant to acid and alkali corrosion, with a designed service life of 20 years.

2. PC + PLC programmable control with bilingual (Chinese/English) operating system.

3. 2-tank cleaning + 4-tank rinsing structure for high cleaning efficiency.

4. Dual-frequency ultrasonic cleaning, adaptable to different product cleaning requirements.

5. Combination of multiple cleaning methods (ultrasonic, jet flow, spray, etc.) to enhance cleaning performance.

6. Water-based cleaning solution for rapid oxide removal and oxidation prevention.

7. Separate main and auxiliary tank design with real-time filtration of cleaning solution.

8. Top cover design to conserve cleaning solution and reduce workshop odors.

9. Rinsing DI water overflows and refreshes from back to front.

10. Automatic addition and discharge of cleaning solution.

11. Dual robotic arms to improve operational efficiency.

12. Real-time monitoring of DI water flow rate.

13. Real-time monitoring of DI water resistivity.

14. Drying section with reserved nitrogen interface to effectively prevent oxidation.

15. Independent electrical control cabinet for easy operation and maintenance.

16. Loading and unloading mechanisms to form a fully automated production line.
