SC700

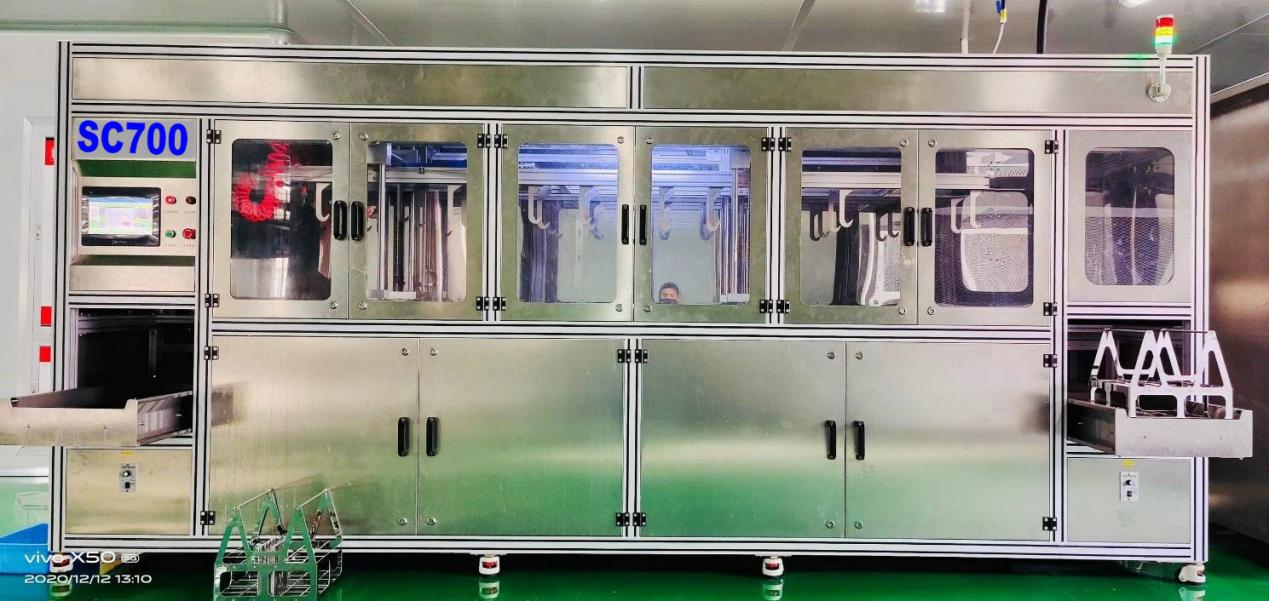

SC700 Leadframe Packaging Flux Cleaning Machine
The SC700 is specially designed for the automatic cleaning of flux residues on leadframe packaging products, especially power semiconductor products such as IPM, PDFN and IGBT. Adopting a multi-tank structure with immersion ultrasonic and jet cleaning methods, the machine uses water-based cleaning fluid to thoroughly remove residual flux on leadframe packaging modules, followed by DI water rinsing and hot air drying processes to complete the whole cleaning operation.

Machine Features:

1. PLC programmable control with HDMI interface and bilingual (Chinese/English) operating system.

2. 2-tank cleaning + 3-tank rinsing structure for high cleaning efficiency.

3. Dual-frequency ultrasonic cleaning, adaptable to different product requirements.

4. Combination of multiple cleaning methods (ultrasonic, jet flow, spray, etc.) to enhance cleaning performance.

5. Water-based cleaning solution for rapid oxide removal and oxidation prevention.

6. Separate main and auxiliary tank design with real-time filtration of cleaning solution.

7. Top cover design to conserve cleaning solution and reduce workshop odors.

8. Rinsing DI water overflows and refreshes from back to front.

9. Automatic addition and discharge of cleaning solution.

10. Single robotic arm with automatic detection of cleaning baskets.

11. Real-time monitoring of DI water flow rate.

12. Real-time monitoring of DI water resistivity.

13. Independent electrical control cabinet for easy operation and maintenance.

14. Loading and unloading mechanisms to form a fully automated production line.
