SC580

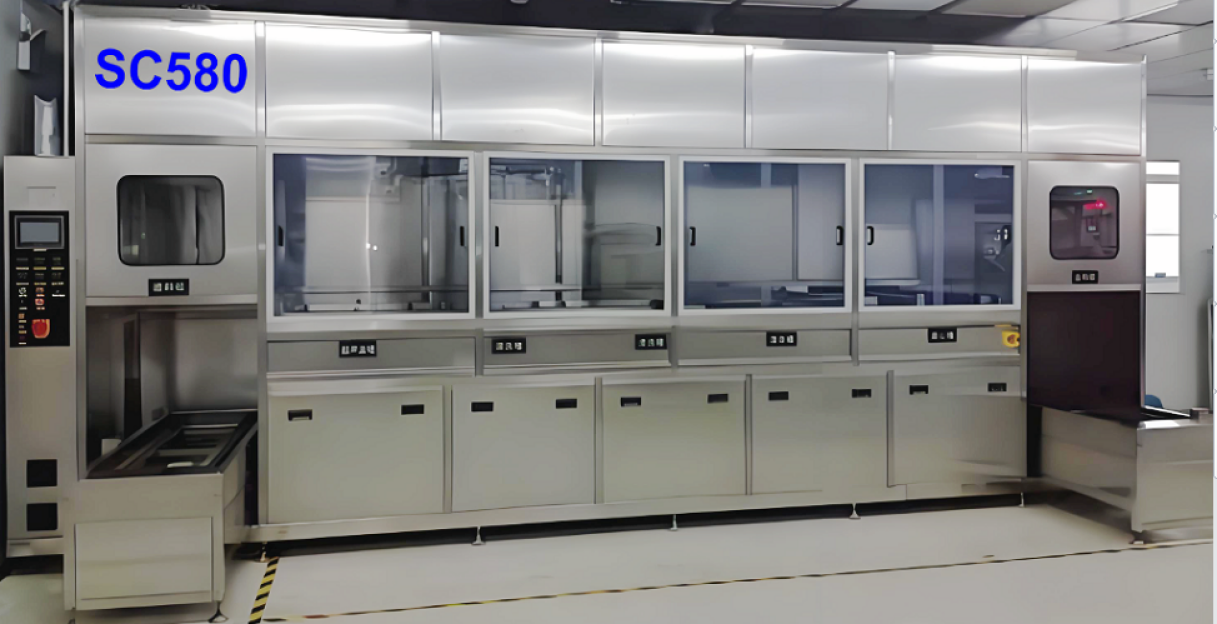

SC580 Leadframe Flux Residue Cleaning Machine

The SC580 is specially designed for the automatic cleaning of flux residues on leadframe products after die bonding, such as IPM and PDFN. Adopting a multi-tank structure with immersion ultrasonic and jet cleaning methods, the machine uses water-based cleaning fluid to thoroughly remove residual flux on leadframe packaging modules, followed by DI water rinsing and hot air drying.

Machine Features:

1. Entire machine constructed from stainless steel, resistant to acid and alkali corrosion, with a designed service life of 15 years.

2. PC + PLC programmable control with bilingual (Chinese/English) operating system.

3. Air knife + drying system, meeting the rapid drying requirements of high-density leadframe products.

4. Dual-frequency ultrasonic cleaning, adaptable to different product cleaning requirements.

5. Combination of ultrasonic and jet flow cleaning methods to enhance cleaning performance.

6. Water-based cleaning solution for rapid oxide removal and oxidation prevention.

7. Separate main and auxiliary tank design with real-time filtration of cleaning solution.

8. Top cover design to conserve cleaning solution and reduce workshop odors.

9. Rinsing DI water overflows and refreshes from back to front.

10. Automatic addition and discharge of cleaning solution.

11. Single robotic arm with automatic detection of cleaning baskets.

12. Real-time monitoring of DI water flow rate.

13. Real-time monitoring of DI water resistivity.

14. Nitrogen inlet in the drying tank to effectively prevent oxidation.

15. Independent electrical control cabinet for easy operation and maintenance.

16. Loading and unloading mechanisms to form a fully automated production line.
