IC680

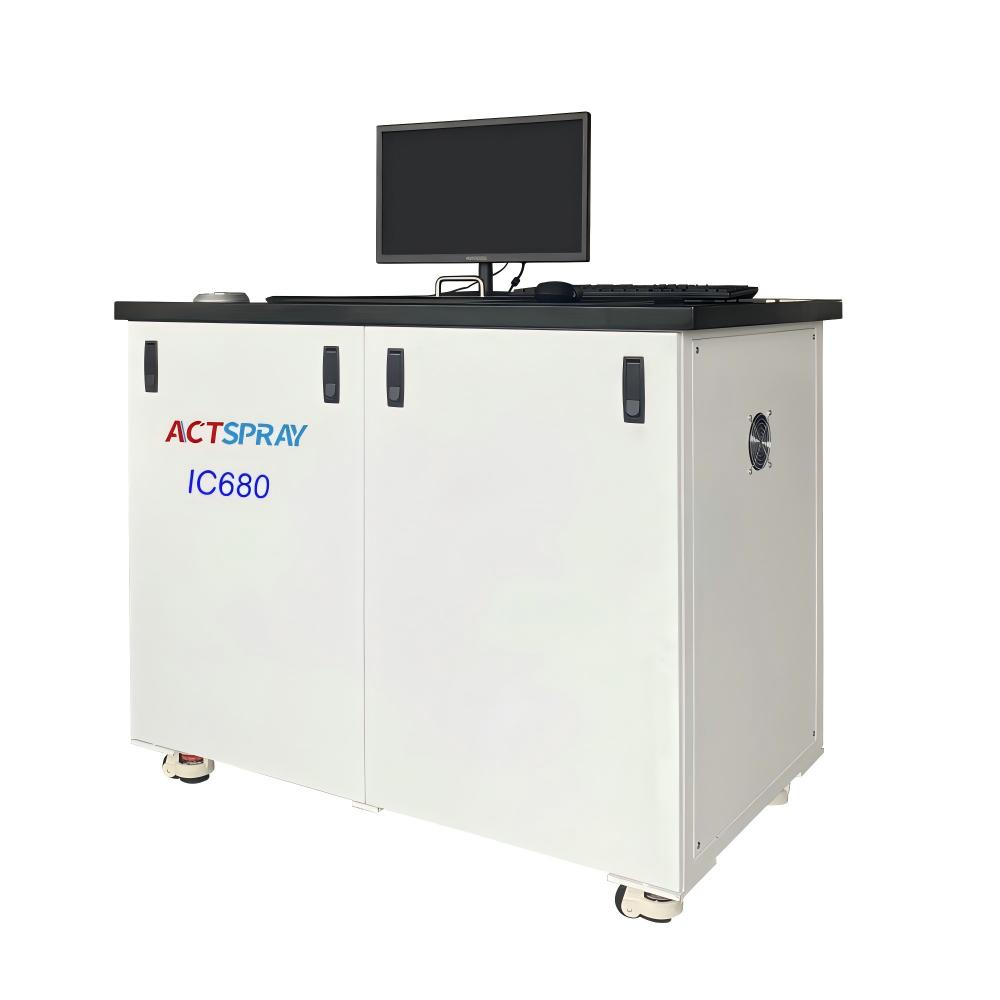

IC680 Ion Contamination Tester

The IC680 is specially designed for the testing of ion contamination content on the surface of PCB/PCBA and semiconductor components. This tester adopts a circulating extraction mode to extract ionic contaminants on the surface of the tested product into the test solvent. Through a high-precision measuring probe and a precision analysis system, it accurately measures and calculates the average ion content per unit area of the tested product, and automatically judges whether the ion content meets the requirements. It can be used as an inspection method for product delivery or provide data reference for the improvement of cleaning processes. Test Product Dimensions: ≤L800*W800*T100 (mm)

Equipment Characteristics:​

1. Utilizes a high-precision PRO-grade resistivity measurement system, free from solvent polarization, ensuring testing accuracy.
2. Automatic calibration function​ achieves one-step setup without complex calculations.
3. Supports both static and dynamic testing modes.
4. Equipped with a dedicated resin regeneration device, offering fast regeneration speed and long service life.
5. Accommodates test products with dimensions of L800W800H100(mm)**, suitable for extra-large product testing requirements.
6. Fully enclosed testing environment​ minimizes the influence of airborne CO₂ on test results.
7. Capable of heating the test solvent to 40°C.
8. Immersive circulation spray​ ensures complete extraction of ionic contaminants.
9. Unique pipeline design and all-new component selection​ deliver the fastest testing efficiency.
10. HD camera​ provides real-time solvent level monitoring; maintaining a stable liquid level ensures higher testing precision.
11. Simple, intuitive operating software​ enables a fully automated testing process.
12. Compatible with international standards such as MIL-P-28809, MIL-STD-2000A, and DEF-STD-10/03.
