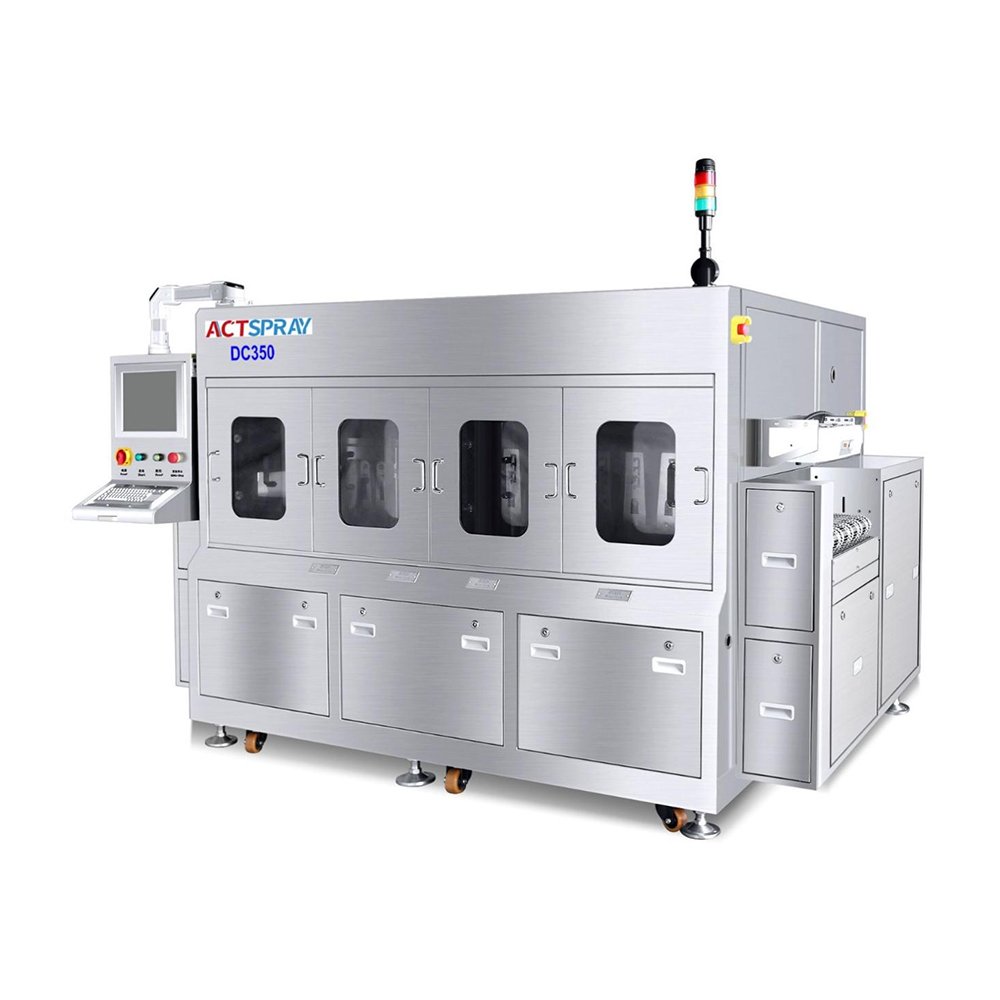

DC350

technological process:
DI water cleaning – DI water pre rinse – DI water rinse – DI water final rinse – air cutting – hot air drying

Features of the equipment:

1. Suitable for automatic cleaning of JEDEC TRAY dust particles.
2. The whole machine is made of stainless steel material, which is resistant to acid and alkali corrosion and has a service life of 20 years.
3. PC+PLC control, operating software in both Chinese and English.
4. Up and down jet cleaning, with adjustable nozzle spray pressure.
5. The wind pressure, height, and angle of the wind blade can be adjusted.
6. DI water resistance monitoring.
7. Automatic detection of water leakage.
8. In and out board sensor, used for counting and detection.
9. SMEMA signal line connection system, connecting upper and lower equipment signals.
10. Customer MES system docking software to monitor machine condition (optional).
11. Energy saving mode.
12. Electrical equipment overcurrent and overload protection.
13. Water tank DI water heating over temperature protection.
14. Water tank high and low water level protection.
15. Emergency stop protection.
16. Double layer protection to prevent leakage in the cleaning and rinsing sections; Double layer protection in the drying section, with low shell temperature.
