BC700

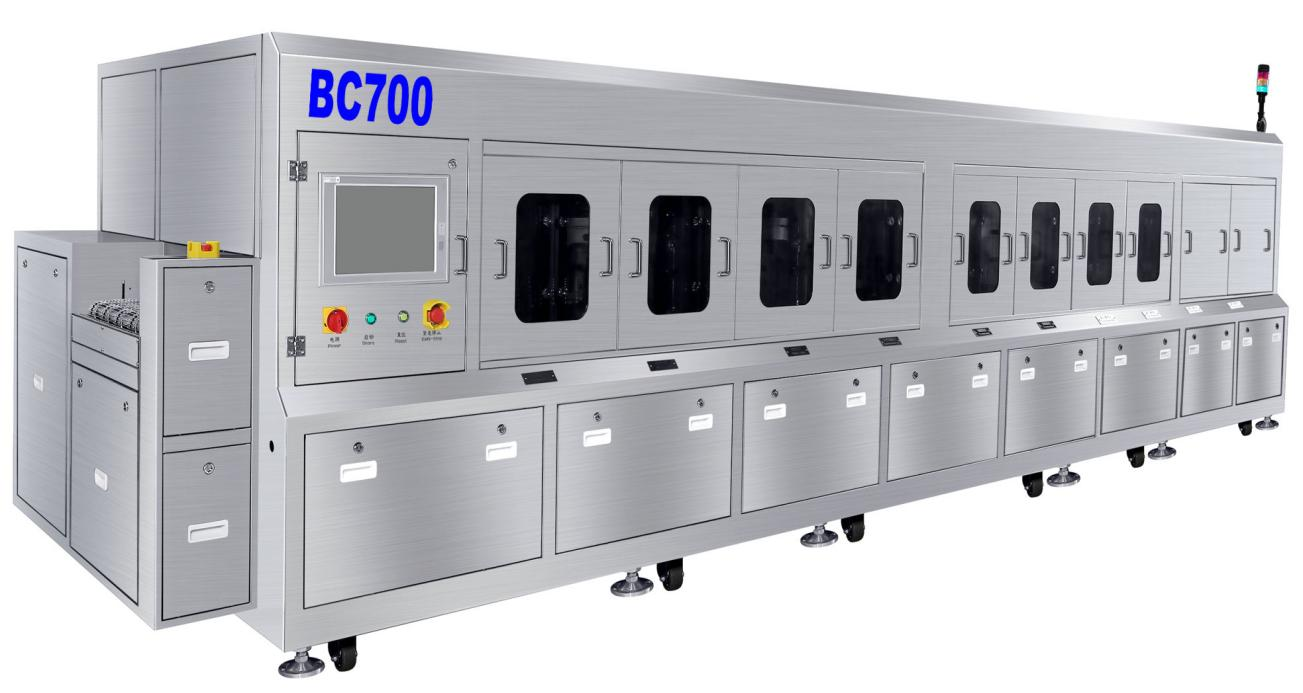

BC700 PCBA In-line Cleaning Machine

The BC700 PCBA in-line cleaning machine is mainly used for the automatic cleaning of residual flux on PCBA pads and surfaces. It adopts a sectional upper and lower spray cleaning method with the process of chemical fluid cleaning + DI water rinsing + hot air drying, which completely removes flux and ionic residues on PCBA and ensures it is thoroughly clean and dry. Machine Dimensions: L7000*W1800*H1700 (mm)

Equipment Characteristics:

1. Machine constructed from stainless steel material, resistant to acid and alkali corrosion, with a design service life of 20 years​ .
2. PC + PLC control system, with a Windows-based Chinese/English operating system​ .
3. Pre-wash + Wash sections​ with an extended cleaning zone; cleaning solution is circulated and filtered for reuse .
4. Pre-rinse section + Rinse section + Final spray rinse section; DI water overflows from the final stage backwards for continuous renewal .
5. High-pressure upper and lower spray cleaning; spray bar angle and spray pressure are adjustable​ .
6. Chemical isolation and air knife angle and pressure are adjustable​ .
7. Real-time monitoring of pressures for cleaning, rinsing, chemical isolation, and air knife​ .
8. Automatic detection of liquid and water leakage​ .
9. Automatic addition and discharge of cleaning solution​ .
10. Condensation and recovery of cleaning solution​ to reduce usage costs .
11. Cleaning solution cooling​ .
12. Rinse DI water resistivity monitoring​ and flow monitoring​ .
13. SMEMA signal line connection system​ for interfacing with upstream and downstream equipment .
14. Software for MES system integration​ to monitor machine operation (Optional) .
15. Sensors equipped at inlet and outlet​ with board counting memory, overtime detection, and energy-saving standby functions .
16. Wastewater discharge device​ .
17. Electrical protections​ including power phase loss/sequence protection, equipment overcurrent/overload protection, and emergency stop protection .
18. High and low liquid level protection​ for both cleaning solution tank and rinse water tank .
19. Overtemperature protection​ for cleaning solution, rinse water, and hot air .
20. Triple-layer protection​ for washing and rinsing sections to prevent liquid/foam overflow, safeguarding the workshop environment .
21. Standard equipped energy-saving mode​ .
22. Real-time cleaning solution concentration monitoring and compensation device​ (Optional) .
