BC250

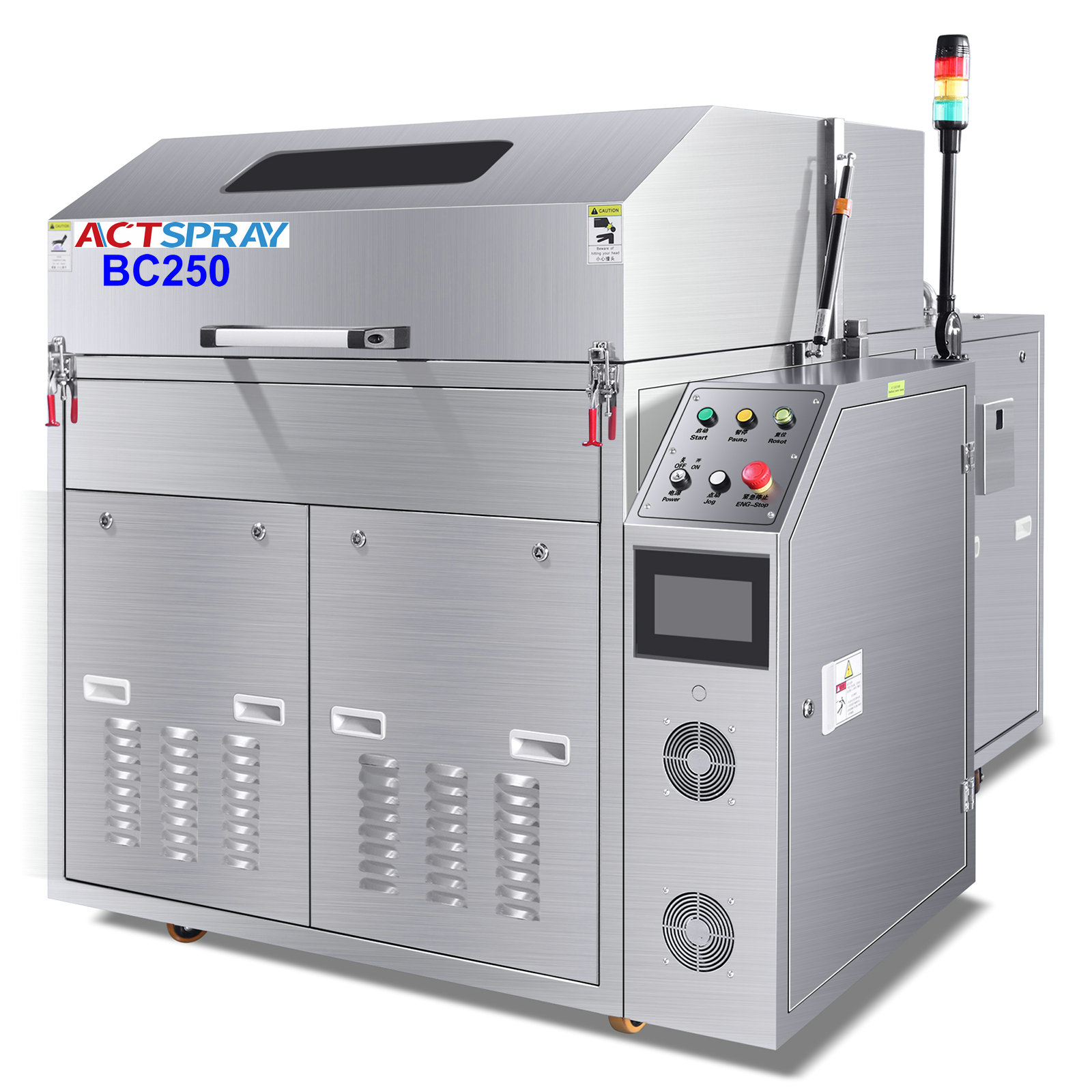

BC250 Reflow Soldering Condenser Cleaning Machine The BC250 Reflow Soldering Condenser Cleaning Machine is mainly designed for the automatic cleaning of reflow soldering condensers, wave soldering carriers and other related components used in the PCBA assembly process. It adopts water-based cleaning fluid for cleaning to remove flux residues, oil stains, impurities, dust and other contaminants from the surface; followed by water rinsing and final hot air drying, ensuring the fixtures achieve 100% cleanliness. Specifications of the BC250 circular cleaning basket: Diameter φ1500mm.

Technical Features 1. A specialized cleaning machine for large-size reflow soldering condensers or pallets, dedicated to removing flux residues. 2. Constructed with stainless steel, resistant to corrosion by acid and alkali cleaning fluids, with a 15-year service life. 3. Simultaneous spray cleaning from the top, bottom and front sides; carriers rotate inside the cleaning basket to achieve full coverage with no blind spots or dead angles. 4. Integrated cleaning, rinsing and drying process ensures the fixtures are thoroughly clean and dry after treatment. 5. Double-layer heat insulation design for the cleaning upper cover prevents scalding and safeguards the safety of operators. 6. Precision filtration system enables recycling of cleaning fluid and rinsing water, improving the utilization efficiency and service life of the liquids. 7. The filling and draining of cleaning fluid and rinsing water are all automatically controllable. 8. Equipped with one-button operation and automatic liquid filling/draining functions for easy and convenient operation. 9. Adopts high-quality internationally renowned components, delivering excellent quality and stable performance.
