AC580

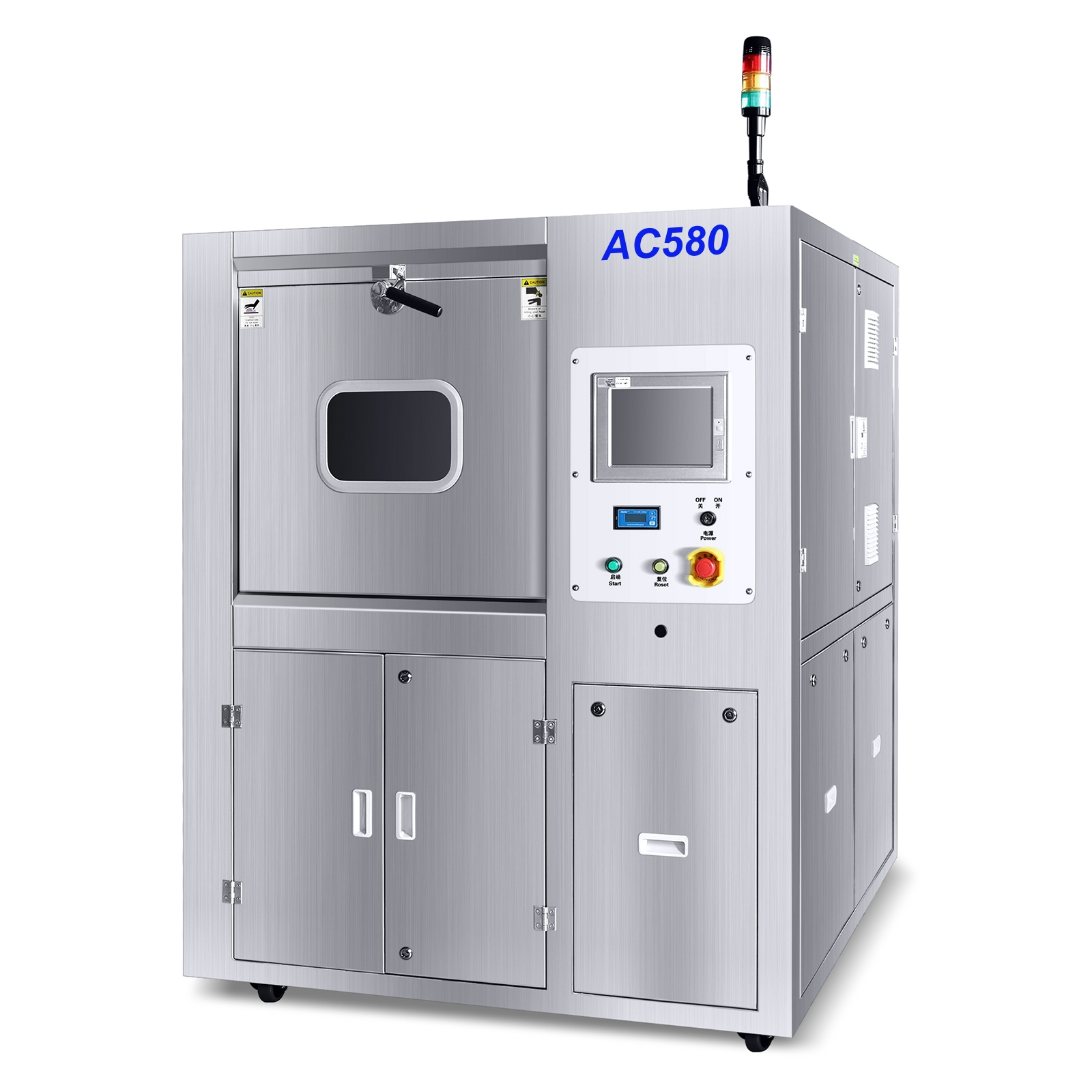

AC580 Large-Size PCBA Flux Automatic Cleaning Machine

The AC580 is a large-size PCBA flux automatic cleaning machine applicable for cleaning PCBA, IGBT, FCBGA and SIP modules. It adopts a rotary spray cleaning method, realizing the entire process of cleaning, rinsing and drying in a single cleaning chamber. Adopting the industry’s most advanced high-flow spray cleaning process, it quickly and effectively removes and flushes away residual flux and ions on PCBA, ensuring it is thoroughly cleaned and dried. It is a new-type, high-performance automatic PCB cleaning equipment. Cleaning Basket Dimensions: L850*W850 (mm), suitable for cleaning large-size and medium-batch PCBA.

Technical Features:

1. Suitable for cleaning post-soldering surface flux residues on PCBA, IGBT, Flip-Chip, and SIP modules​ .
2. Compatible with all flux types, including rosin, no-clean, and water-soluble fluxes​ .
3. PC + PLC control system​ with Windows OS and computer software interface for simpler operation. Can connect to MES systems​ .
4. Real-time monitoring, display, and adjustment via software of spray pressure​ (cleaning solution/rinse water), temperature​ (cleaning solution/rinse water/drying), and process timing​ (cleaning, rinsing, drying) .
5. Completely independent cleaning and rinsing systems​ reduce cross-contamination between liquids and water, minimizing chemical consumption .
6. Dual DI rinse tanks​ save 25-30%​ on water usage .
7. Rinse water can be heated​ .
8. Real-time monitoring of rinse water conductivity​ .
9. Spray bar rotation mechanism uses a lubrication-free design​ for smooth operation, preventing secondary contamination during cleaning .
10. Cleaning chamber door features a double-layer sealing structure​ to prevent mist overflow and protect the workshop environment .
11. Double-layer cleaning basket​ with upper, middle, and lower spray bars .
12. Equipped with a concentrate tank​ to replenish cleaning solution concentration, ensuring stable cleaning performance .
13. Features an observation window​ for visual monitoring of the operation process .
14. Optional rinse water recycling module​ allows water reuse, reducing wastewater discharge by up to 90%​ (Optional) .
15. Can be configured with a barcode scanner​ and connect to customer MES systems​ for full parameter monitoring and process control (Optional) .
16. Can be equipped with an optional proportional pump​ (Optional) .
17. Equipped with filling and drainage pumps​ for automatic liquid addition and discharge .
18. Safety features include over-temperature protection, liquid level control, electrical overload protection, and door interlock protection​ .
