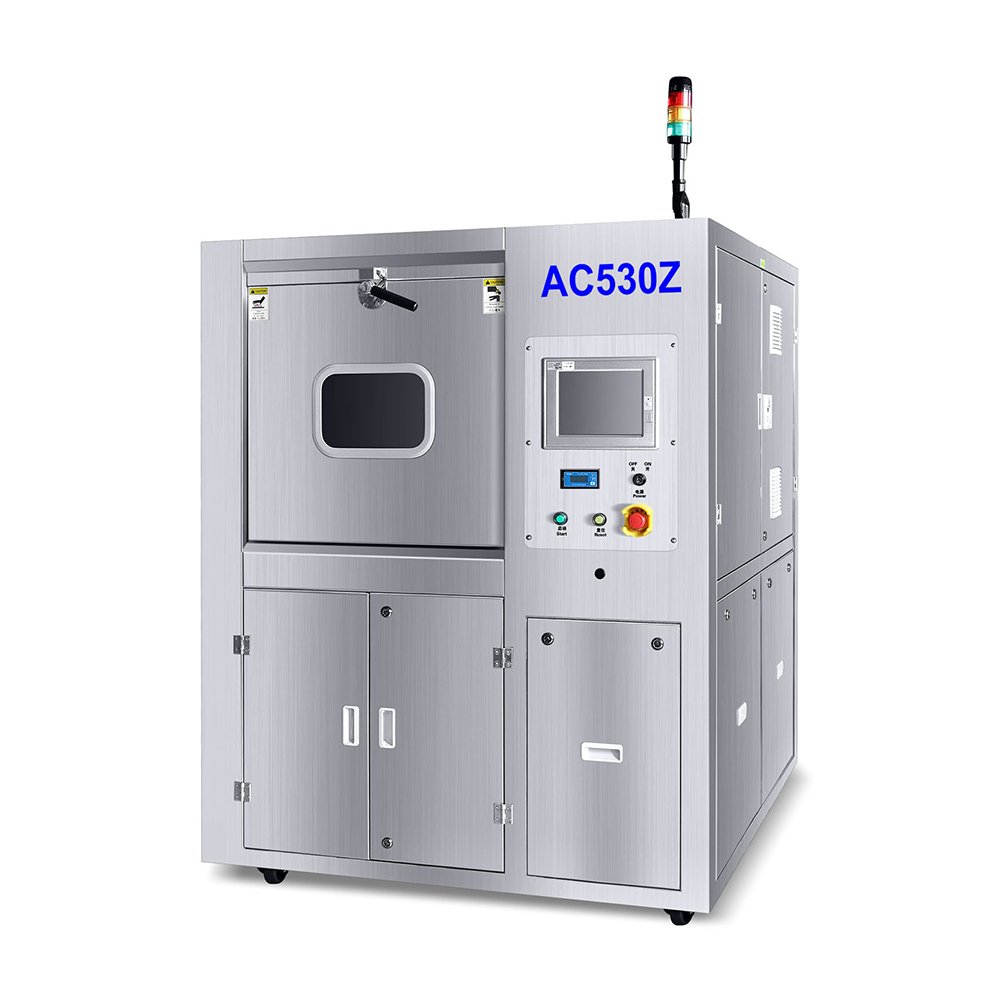

AC530Z

technological process:

Insert the fixture – spray cleaning – spray rinsing – hot air drying – remove the fixture

Technical features:

1. BGA ball planting fixture surface residue and foreign matter special cleaning machine.
2. Large capacity cleaning room, capable of cleaning 2 ball planting fixtures simultaneously, with simple and convenient access.
3. The whole machine is made of SUS304 stainless steel and well-known electrical components, which are sturdy and durable.
4. The entire cleaning process is automatically carried out in a sealed space, with non-contact cleaning to avoid collisions and damage to fixtures during the cleaning process.
5. The cleaning process adopts a pressurized spray method.
6. Low temperature drying, with the drying temperature controlled within ± 10 ℃ to avoid damaging the internal structure of the fixture.
7. Fully automated cleaning, cleaning records can be saved and uploaded to the MES system.
8. Industrial PC+PLC control, WINDOWS operating system, computer software interface.
9. Real time collection and monitoring of cleaning parameters.
7. The spray bar rotating mechanism adopts a lubrication free mechanism, and the cleaning process is pollution-free.
8. The cleaning room door adopts double-layer sealing.
9. Equipped with an observation window, the machine operation process can be visualized.
10. Configurable scanning gun (optional).
11. Equipped with an automatic liquid addition and discharge pump.
12. Protection function; High and low liquid level control function; Electrical facilities have overcurrent and overload protection functions; Cleaning door interlock protection.
