AC520

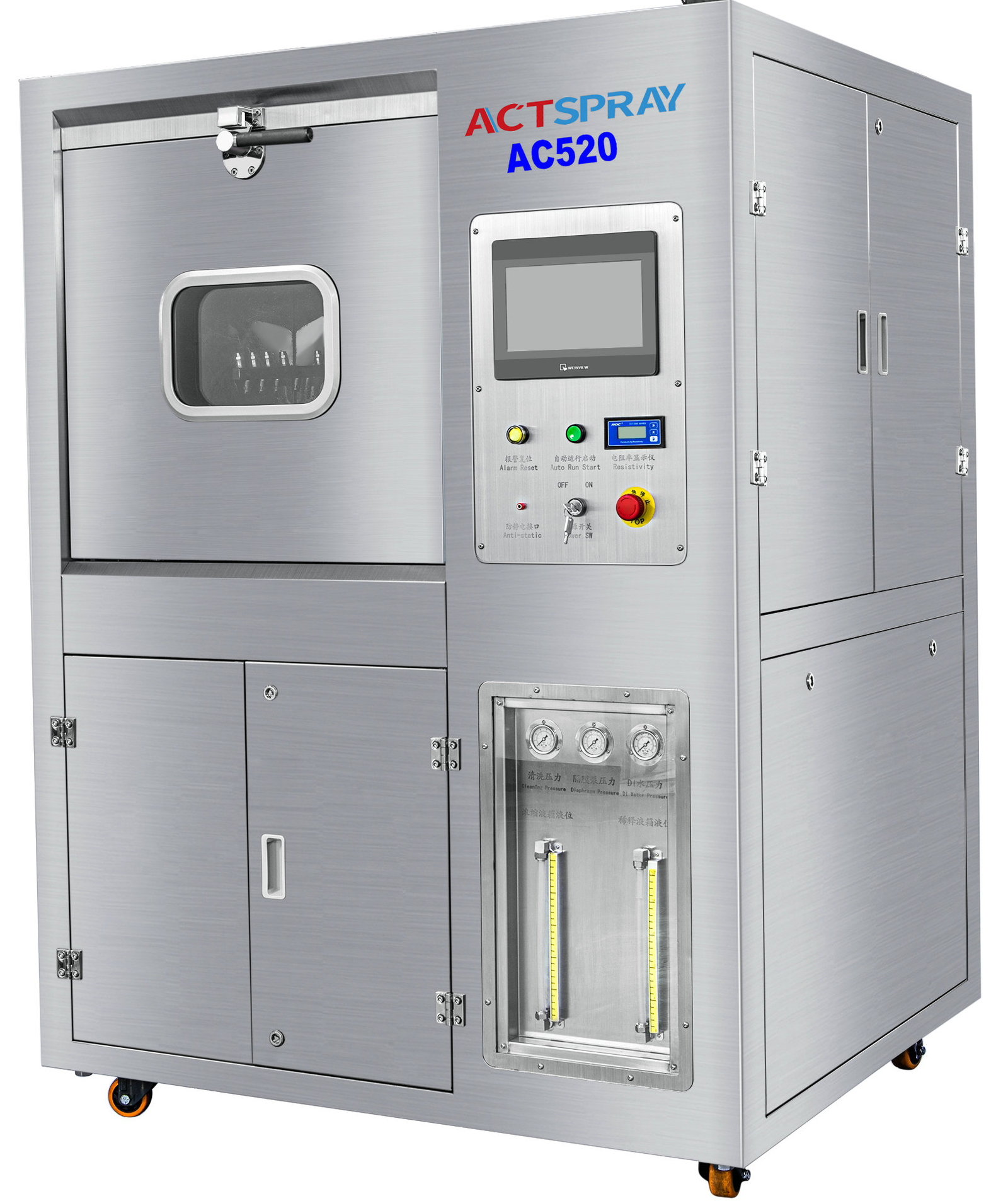

AC520 PCBA Flux Residue Automatic Cleaning Machine

The AC520 is designed for the automatic cleaning of residual flux on PCBA. It adopts the process of chemical cleaning fluid cleaning, DI water rinsing and hot air drying, realizing the whole process of cleaning, rinsing and drying in a single cleaning chamber. Adopting the industry’s most advanced high-flow spray cleaning process, it completely removes residual flux and ions on PCBA, ensuring the cleaned PCBA meets the required cleanliness standards. Cleaning Basket Dimensions: L700*W700 (mm), suitable for cleaning large-size PCBA.

Technical Features:

1. Capable of cleaning all types of fluxes .
2. Suitable for cleaning small-batch, high-mix PCBA .
3. Completes the entire cleaning process (washing, rinsing, drying) using a spray method within a single cleaning chamber .
4. Compact machine structure with a small footprint .
5. Adjustable spray pressure .
6. Spray bar rotation mechanism employs a lubrication-free design for smooth operation, preventing contamination during cleaning and eliminating the need for regular replacement .
7. Cleaning chamber door features a double-layer sealing structure to prevent atomized liquid from escaping the chamber .
8. Cleaning solution temperature control ensures consistent cleaning results .
9. Uses compressed air blowing to recover residual liquid from pipes and pumps, effectively saving cleaning solution .
10. Equipped with a rinse water conductivity tester .
11. PLC + HDMI software control, with a Chinese/English operating system .
